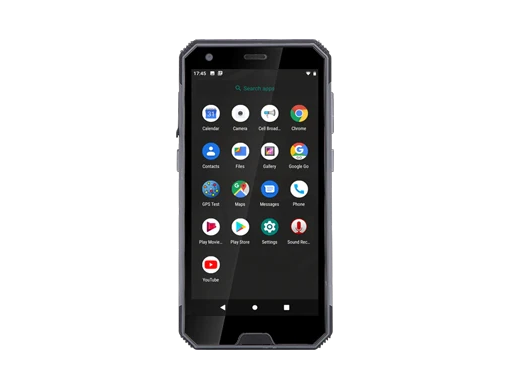

MDT665 — 5.7" rugged Android handheld.
Carry-in-hand rugged Android device for operators who move between machines through a shift. Optional 1D/2D barcode scanner, integrated NFC / RFID, IP67 (IP68 optional). Docks into any FMC650-equipped machine to run the PROSTART® pre-start; standalone Android device when off-cradle.
What it is
The pre-start UI that follows the operator.
The MDT665 is a rugged 5.7" Android handheld — think barcode-scanner-scale rather than tablet-scale. The design brief is operators who don't stay in one cabin: forklift depots where one operator drives four machines through a shift, warehouse yards, multi-asset service crews.
Each FMC650-equipped machine gets a dock. The operator carries the MDT665, walks up to the machine, drops it into the cradle, runs the pre-start on the handheld's screen. The FMC650 gates immobilisation on the answer. Operator undocks, walks to the next machine, repeats.
Off-cradle, the MDT665 is a normal Android device with 4G, Wi-Fi and optional built-in barcode scanning — useful for warehouse pick-pack workflows on top of the pre-start.
Pricing
Upfront hardware and subscription.
- MDT665 handheld: $600 + GST per unit, upfront. Includes the mounting kit with RS232 connection for the FMC650.
- Teltonika FMC650 telematics device: $280 + GST — required in every machine where PROSTART® pre-starts should gate starting. The MDT665 works standalone as an Android device without the FMC650, but you don't get pre-start immobilisation.
- Optional 1 GB Teletrack SIM: $10 / month + GST — when the MDT665 needs its own cellular data (typically only when used away from an FMC650 for extended periods).
- No extra subscription on the MDT665 itself. The asset runs on the base Telematics tier at $21.90 / asset / month + GST for the FMC650. PROSTART® with immobilisation adds $15 / device / month + GST if the asset isn't already on Track + PROSTART®.
At a glance
MDT665 specifications
- Screen
- 5.7" IPS 720×1440, glove-touch
- Dimensions
- 161.5 × 77.5 × 14.5 mm
- Weight
- 280 g
- IP rating
- IP67 (IP68 optional)
- Drop rating
- 1.2 m to MIL-STD-810G
- Operating temp
- -20 to +60 °C
- CPU
- MediaTek octa-core 2.0 GHz
- RAM / storage
- 4 GB LPDDR4 / 64 GB flash + microSD to 128 GB
- OS
- Android 12 or 14 (GMS or Non-GMS)
- Cellular
- 4G LTE FDD B1/2/3/4/5/7/8/12/17/20/28/66; TDD B38/40/41; dual nano-SIM
- GNSS
- GPS + GLONASS + Galileo, high-sensitivity
- Wi-Fi / Bluetooth
- 802.11 a/b/g/n/ac dual-band, Bluetooth 4.1/4.2
- RFID / NFC
- NFC ISO 14443 A/B, ISO 15693
- Scanner
- Optional 1D/2D barcode scanner (integrated)
- Cradle interfaces
- RS232 via pogo pins; USB Type-C on device
- Battery
- 3.8 V 4000 mAh Li-ion, user-replaceable
- Camera
- 20 MP rear with autofocus + flash
Add MDT665 to a quote
Handheld pairs with an FMC650 in every machine you want the pre-start to gate. Book a walkthrough and we'll size the cradle + harness count to your fleet.
