Topicon device

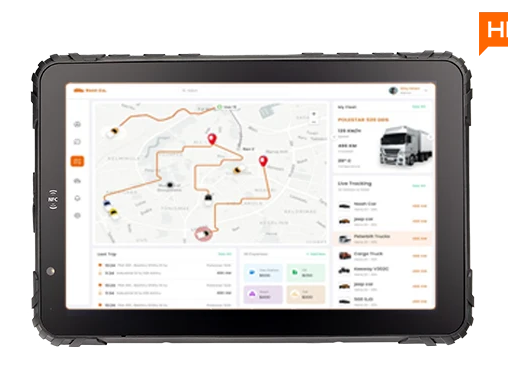

MDT865 — 8" rugged fleet tablet.
Cabin-mounted Android tablet for trucks, heavy plant and dispatched light commercial. 8" 1000-nit anti-glare display, IP67, MIL-STD-810G drop rated. Docking cradle brings RS232 + CAN across to the FMC650 for the PROSTART® pre-start workflow.
What it is
The screen operators tap the pre-start through.
The MDT865 is the operator UI in a cabin-mounted rugged tablet. It sits permanently in the machine, connected via its docking cradle to the Teltonika FMC650. The operator taps through the pre-start questionnaire, the FMC650 enforces the immobilisation gate, and the platform records the result — same audit trail as the smartphone-based PROSTART® workflow, just with a fixed cabin screen instead of BYOD.
The docking cradle carries two RS232 channels, one RS485 channel, a CAN bus line, and USB — all via 18-pin pogo pins to the tablet. The tablet swaps out in seconds if it needs replacement; the harness stays in the vehicle.
Pricing
Upfront hardware and subscription.
- MDT865 tablet: $800 + GST per unit, upfront. Includes the mounting kit with RS232 connection for the FMC650.
- Teltonika FMC650 telematics device: $280 + GST — required for the PROSTART® pre-start workflow.
- No extra subscription on the MDT865 itself. The asset runs on the standard base Telematics tier at $21.90 / asset / month + GST for the FMC650. PROSTART® gating adds the PROSTART® with immobilisation module at $15 / device / month + GST if the asset isn't already on Track + PROSTART®.
At a glance
MDT865 specifications
- Screen
- 8" IPS 1280×800, 1000 nits, anti-glare, glove-touch
- Dimensions
- 207 × 138 × 17 mm
- Weight
- 604 g
- IP rating
- IP67; IP67 all-metal dock option (BKT865)
- Drop rating
- 1.2 m to MIL-STD-810G
- Operating temp
- -20 to +60 °C
- CPU
- MediaTek octa-core 2.0 GHz
- RAM / storage
- 4 GB LPDDR4X / 64 GB eMMC + microSD to 512 GB
- OS
- Android 12 or 14 (GMS or Non-GMS)
- Cellular
- 4G LTE FDD B1/2/3/4/5/7/8/12/17/20/28/66; TDD B38/40/41; dual nano-SIM
- GNSS
- GPS + GLONASS + Galileo, high-sensitivity, external MMCX antenna
- Wi-Fi / Bluetooth
- 802.11 a/b/g/n/ac dual-band, Bluetooth 5.0
- Cradle interfaces
- 2 × RS232, 1 × RS485, CAN bus, 4 × GPIO, 2 × USB-A, ignition sense
- Vehicle power
- 12 V / 24 V with ignition sensing
- Battery
- 3.8 V 8000 mAh Li-ion, rechargeable
- Camera
- Rear autofocus with flash
- Video hub
- Optional 4-channel AHD (with camera module)
Add MDT865 to a quote
Pairs with the FMC650 — configure both in the quote builder, or book a 30-minute walkthrough so we can size the harness kit and install to your machine mix.
